Air Conditioning Installation for Architectural Wallsz Office Relocation

Expert Air Conditioning Installation and Ventilation Solutions for Office Relocation in Bromsgrove

At IRS, we take pride in delivering high-quality air conditioning and ventilation installations, tailored to meet the needs of each project. One recent HVAC installation was for Architectural Wallsz, an office fit out company relocating to a new office in Bromsgrove. This case study looks at how we helped them achieve the perfect working environment for their new space.

The Challenge: Creating a Comfortable Office Environment

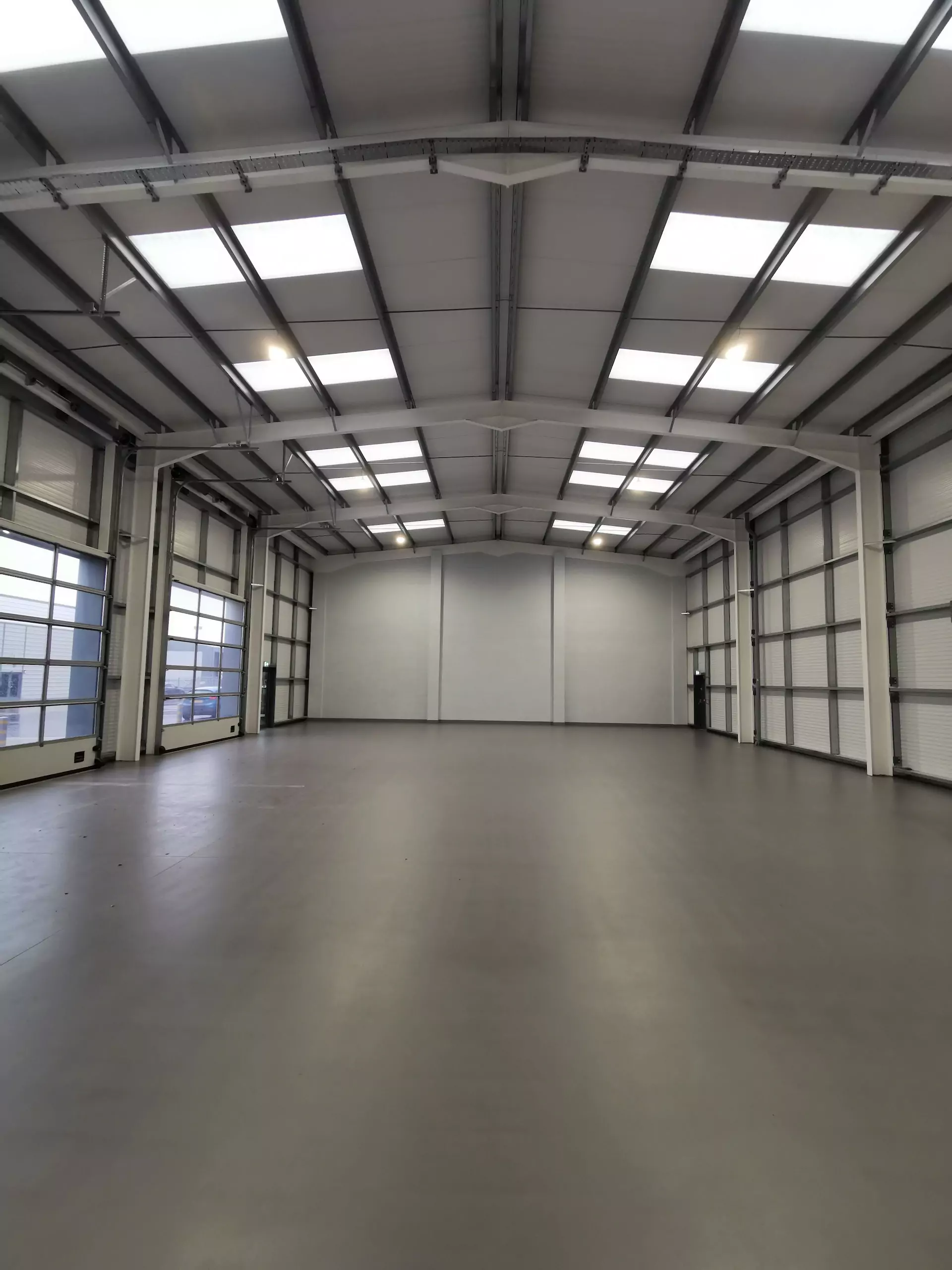

Architectural Wallsz was moving to a new building, which had originally been a warehouse, and was undergoing conversion into an office and showroom. The space didn’t have any HVAC systems in place, so the challenge was to design and install a completely new system to regulate the temperature and air quality.

The New Office Had Some Unique Requirements:

• Open-plan working area with a 7-metre high exposed ceiling
• Five individual offices with suspended ceilings
• No openable windows, meaning effective ventilation was essential
• The system had to maintain a comfortable temperature throughout the year

With these factors in mind, it was crucial to consider a HVAC system installation that wouldn’t compromise the building’s aesthetics but would still operate with great performance.

The Solution: A New Air Conditioning and Ventilation System

Here’s a breakdown of the air conditioning system and ventilation solution that we proposed and installed:

Air Conditioning Equipment

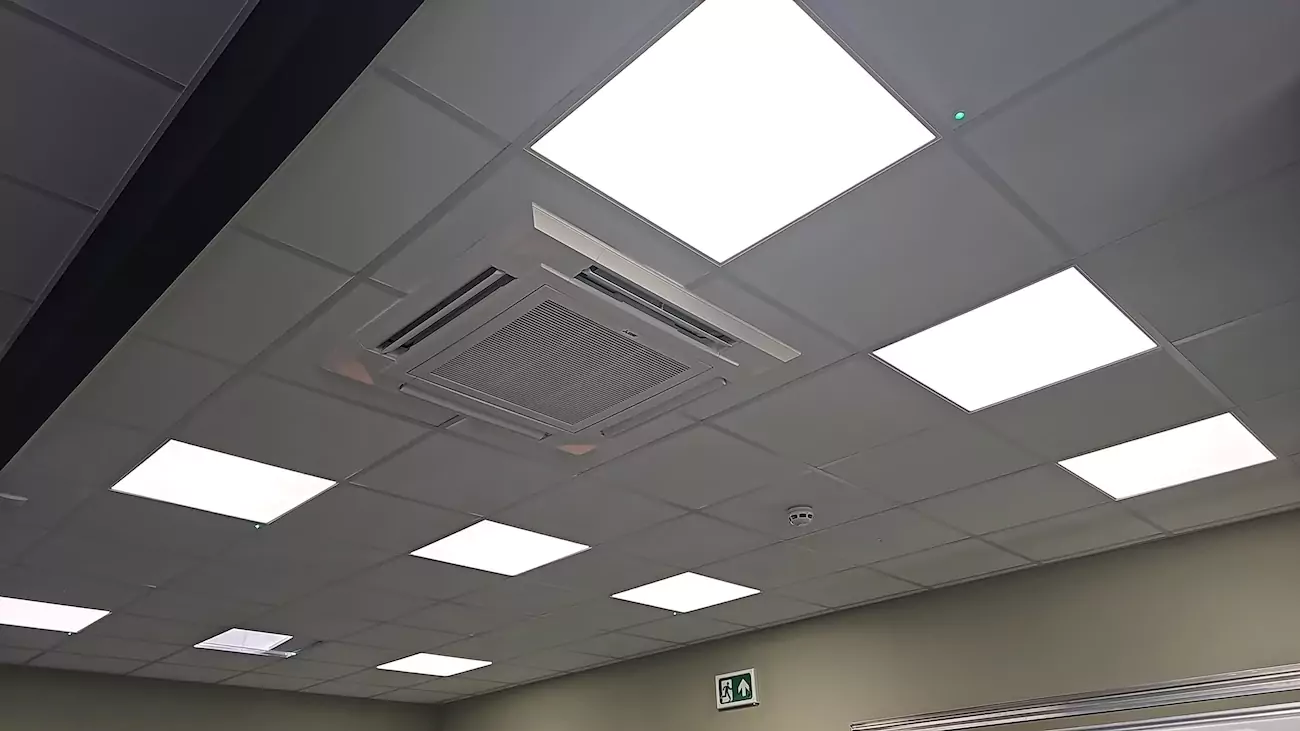

• Main Office: 1 x 12.5 kW Twin Split Cassette System
• 2-Person Office: 1 x 2.5 kW Compact Cassette System
• Small Office: 1 x 2.5 kW Compact Cassette System
• 6-Person Demo Room: 1 x 3.5 kW Ducted System
• 4-Person Meeting Room: 1 x 2.5 kW High Wall Mounted System

Ventilation Equipment

• MVHR: 1 x 250l/s Heat Recovery System
• Elta Fans TL150 Inline Extract Fan

We also took care of the ventilation system installation to maintain good air quality, given the lack of openable windows.

Working Around the Design and Space Constraints

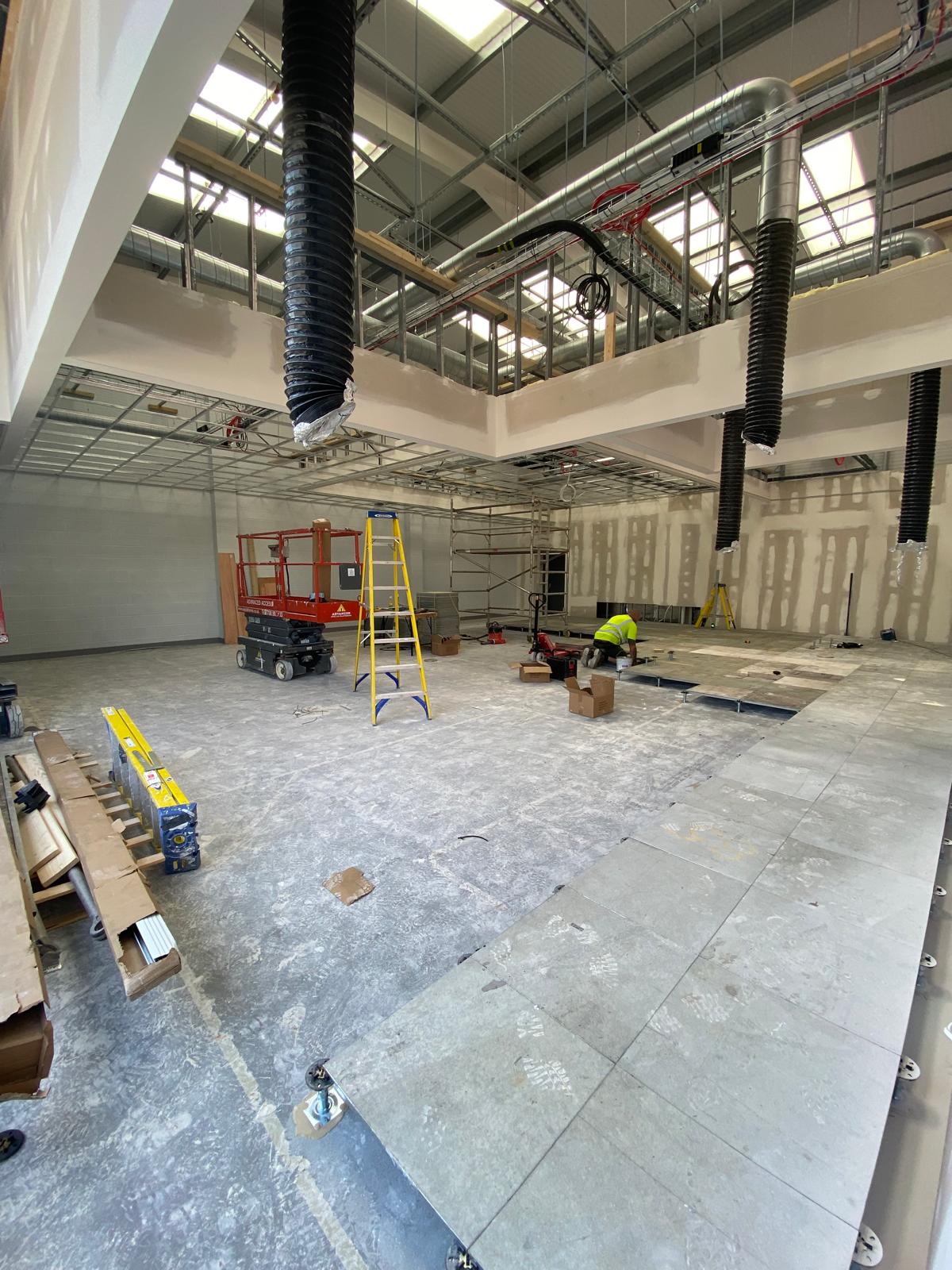

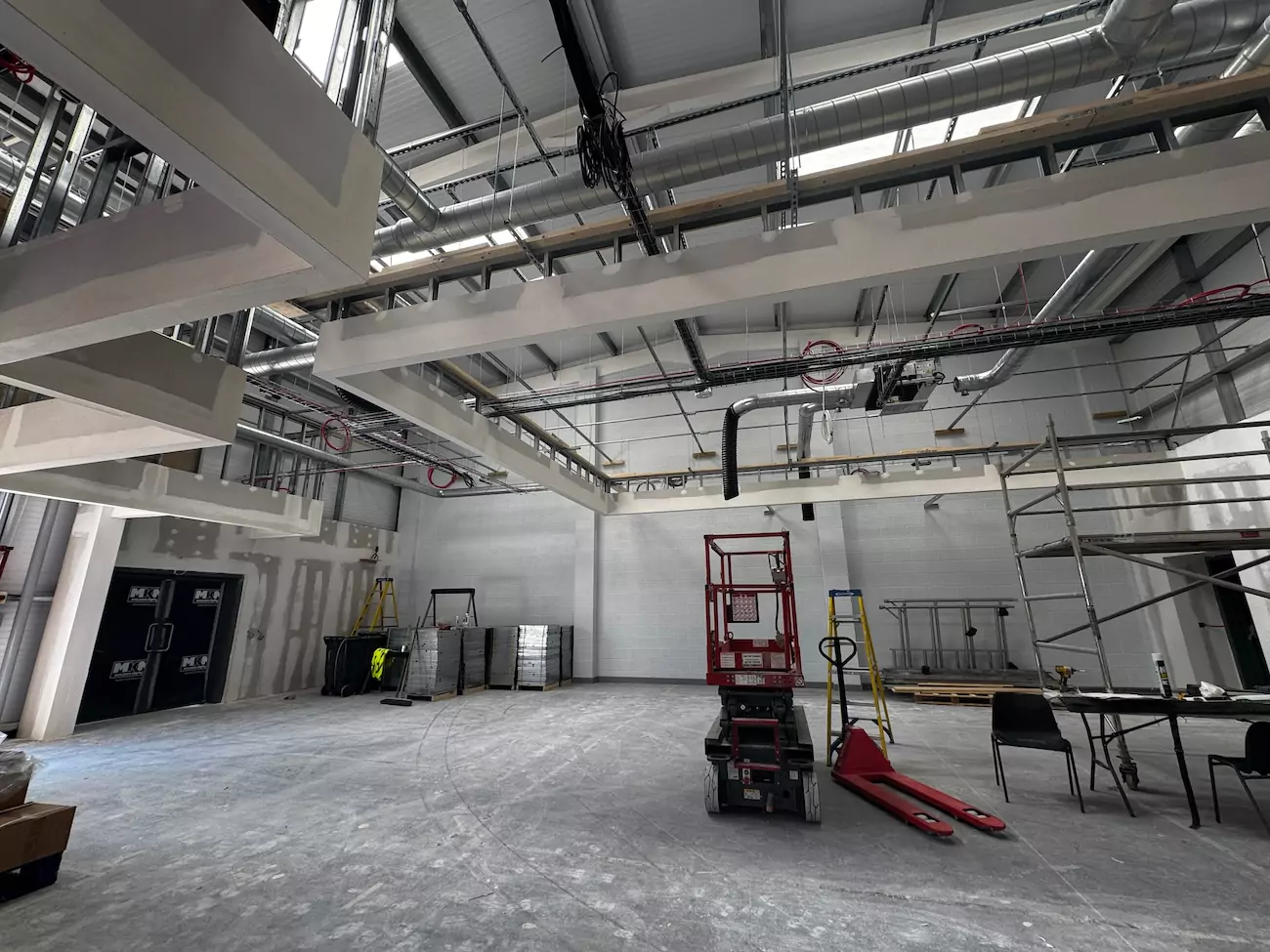

One of the biggest challenges was dealing with the high ceiling void, which made fixing and access more complicated. Our team worked closely with the site contractors to make sure we could fit the systems properly without disrupting the overall design.

Additionally, the fan coils needed to blend with the building’s aesthetic. We provided several options to Architectural Wallsz, so they could choose a solution that met both the functional and visual requirements of the space.

To keep everything on track, we worked with the client to develop a three-phase installation plan that aligned with their fit-out schedule. This ensured that our work didn’t cause any disruption to the project’s progress.

The Outcome: A Job Well Done and a Happy Client

The air conditioning and ventilation system we installed ensures that the office remains comfortable all year round, with consistent temperature regulation and excellent air quality. Thanks to our team’s careful planning and hard work, we were able to meet all of Architectural Wallsz’s requirements, while delivering a seamless and efficient installation.

Hannah Balcon, Project Manager at Architectural Wallsz, said:

"We relocated our office this year and were keen to use a local company for the work required at the new premises. After meeting with several local air conditioning providers, IRS stood out immediately with their expertise and professionalism. Choosing them was an easy decision, and the quality of their work during the installation confirmed we’d made the right choice. Their onsite team was efficient, courteous, and tidy, while the office staff consistently went above and beyond. I look forward to working with IRS again on future projects."

We’re proud to have been part of this successful project and are grateful for the opportunity to work with Architectural Wallsz.
